E-Type vingene er designet for mer glid og mer fart for maksimal pumping og flyvende effektivitet.
E-Type vingsettet har høyere aspekt forhold og rettere leading edge som gjør vingen mer effektiv for høyere fart med mindre "drag"
E-Type kommer i størrelsene 1100, 1300, 1500, 1700 og 2000 cm2 frontvinge.
Dobbel konkav gir økt stabilitet når farten øker, "drop-down" vingender gir bedre grep i svinger.

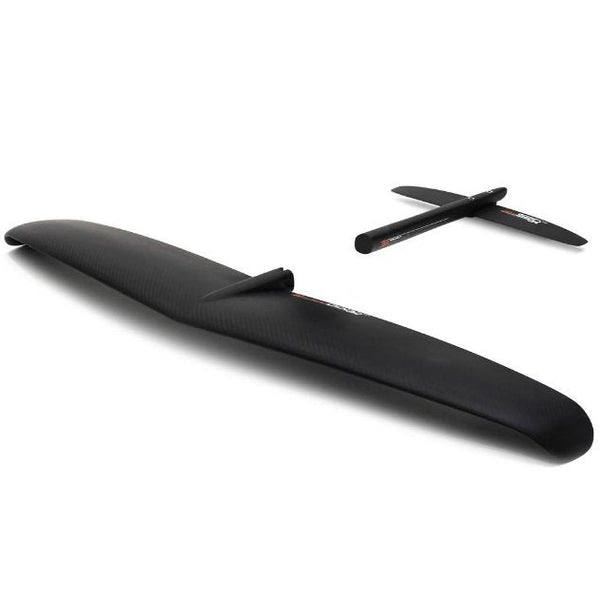

E-Type vingesettet blir levert med Razr 250 bakvinge og Quick Lock II Carbon 36 tailpiece.
For 2022/23 er E-type frontvinge tilpasset Quick Lock II fuselage som har større diameter i festet for økt stivhet.
Wing Spans: | 2000: 110cm / 1700: 96cm / 1300: 82cm / 1100: 74cm |
Wing Aspect Ratios: | 2000: 6.05 / 1700: 5.4 / 1300: 5.2 / 1100: 5.0 |
E-TYPE FRONT WING DESIGN
The E-Type's medium aspect ratio and straighter leading edge increases flight efficiency for a faster glide with less drag.
Starboard Foils' signature look: the double concave adds stability at speed while the drop-down wing tips act like thruster fins to give precise carving traction.
The thick asymmetrical profile with a rounded leading edge gives maximum lift to boost low-speed performance and overall flying efficiency.
FRONT WING FITTING:
QUICK LOCK II
The front wing slides over the fuselage and locks in place with a quick half-turn of the pressure bolt. By inserting spacers, Quick Lock II lets you adjust the wingbase - the distance between the front and tail wing, by up to 4cm.
Will this front wing work with other fuselages?
Quick Lock II front wings fit only Quick Lock II fuselages. They won't work with first generation Quick Lock fuselages or the Evolution fuselages.
TAIL WING FITTING SYSTEM
The tail wing sits on a carbon tail piece that has an adjustable rocker saddle. Set the tail wing to your desired angle then slide it on to the fuselage. The tail piece locks in place using our patented Quick Lock system, just like the front wing.
MORE LIFT, NEUTRAL OR MORE SPEED?
TRIMMING YOUR TAIL WING
More angle gives more lift. Less angle gives more speed. Once you've trimmed the tail wing angle to your liking, simply tighten the two bolts. There's no need to undo these bolts again. The tail wing and tail piece stay together, ready for Quick Lock assembly / disassembly.
TAIL WING / TAIL PIECE DESIGN
The Razr 250's super-thin profile and gentle C-shape configuration make it our our new go-to wing thanks to its speed, efficiency and maneuverability. Suitable for wing, sup, surf, pump foiling, dock starts or downwind runs. Bascially everything.
The carbon tail piece is available in sizes 31, 36 and 40. We chose the 36 for the standard wing set since the 36 adds more stability while still offering plenty of maneuverability and reactivity.
Use the 31 to add maneuverability. Use the 40 to add stability.
